MIKROTIK RouterBOARD RBcAP2nD

Detailní popis produktu

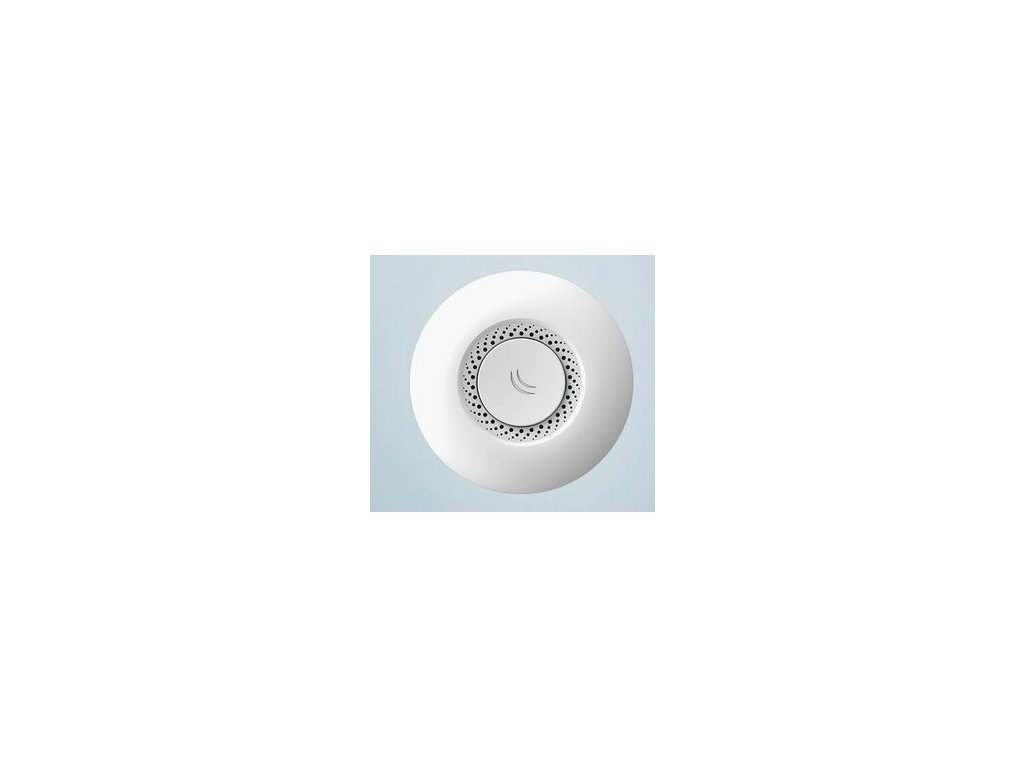

MikroTik Logo Home About Buy Jobs Hardware Software Support Training Account Products Home Wireless for home and office cAP cAP Ceiling AP, Dual-Chain 2.4GHz, 650MHz CPU, RouterOS L4, 802.3at/af support RouterBOARD cAP-2nD (ceiling Access Point) is our first 2.4GHz Dual-Chain ceiling AP. Inconspicuously designed, it blends into the environment, perfect for hospitality business like hotels, airports, shopping malls etc. cAP-2nD supports 802.11b/g/n and can be powered by PoE. It’s a perfect companion for the MikroTik CAPsMAN (controlled AP system manager), allowing you to control all your AP devices from one central location. Unlike traditional controller software, which requires a separate PC/Mac to run, our CAPsMAN runs on any existing RouterBOARD device in your network. No need for a separate controller machine. Everything is included to get you started, wall/ceiling mount, PoE injector, power adapter and even the screws and screw anchors. Send purchase questions Specifications Support & Downloads Gallery Test results Specifications Details Product code RBcAP2nD Architecture MIPSBE CPU QCA9533 CPU core count 1 CPU nominal frequency 650 MHz Dimensions 185mm diameter, 31mm height RouterOS license 4 Operating System RouterOS Size of RAM 64 MB Storage size 16 MB Storage type FLASH MTBF Approximately 100'000 hours at 25C Tested ambient temperature -40°C to 70°C Suggested price $49.95 Wireless capabilities Details Wireless 2.4 GHz Max data rate 300 Mbit/s Wireless 2.4 GHz number of chains 2 Wireless 2.4 GHz standards 802.11b/g/n Antenna gain dBi for 2.4 GHz 2 Wireless 2.4 GHz chip model QCA9533 Wireless 2.4 GHz generation Wi-Fi 4 Ethernet Details 10/100 Ethernet ports 1 Powering Details Number of DC inputs 1 (PoE-IN) Max power consumption 4 W Cooling type Passive PoE in 802.3af/at PoE in input Voltage 11-57 V Certification & Approvals Details Certification CE, FCC, IC, EAC, ROHS IP IP20 Other Details Mode button Yes Wireless specifications 2.4 GHzTransmit (dBm)Receive Sensitivity 1MBit/s22-96 11MBit/s22-89 6MBit/s20-93 54MBit/s18-74 MCS020-93 MCS716-71 Included parts PoE injector K-46 screw kit Ceiling mount 24V 0.2A power adapter The device has an operating system preinstalled and licensed. No separate purchase is necessary and the product is ready to use. The device includes free software updates for the life of the product or a minimum of 5 years starting from date of purchase.. MikroTik Home About Customers Jobs Support Get support Forum Documentation Send an E-mail Other Newsletters MUM Designs Privacy policy Sign up for the newsletter Please sign up to get notified about new RouterOS version releases and other useful information! MikroTik Logo Envelope icon Facebook icon X icon Mastodon icon Youtube icon MikroTik app ios anroid
