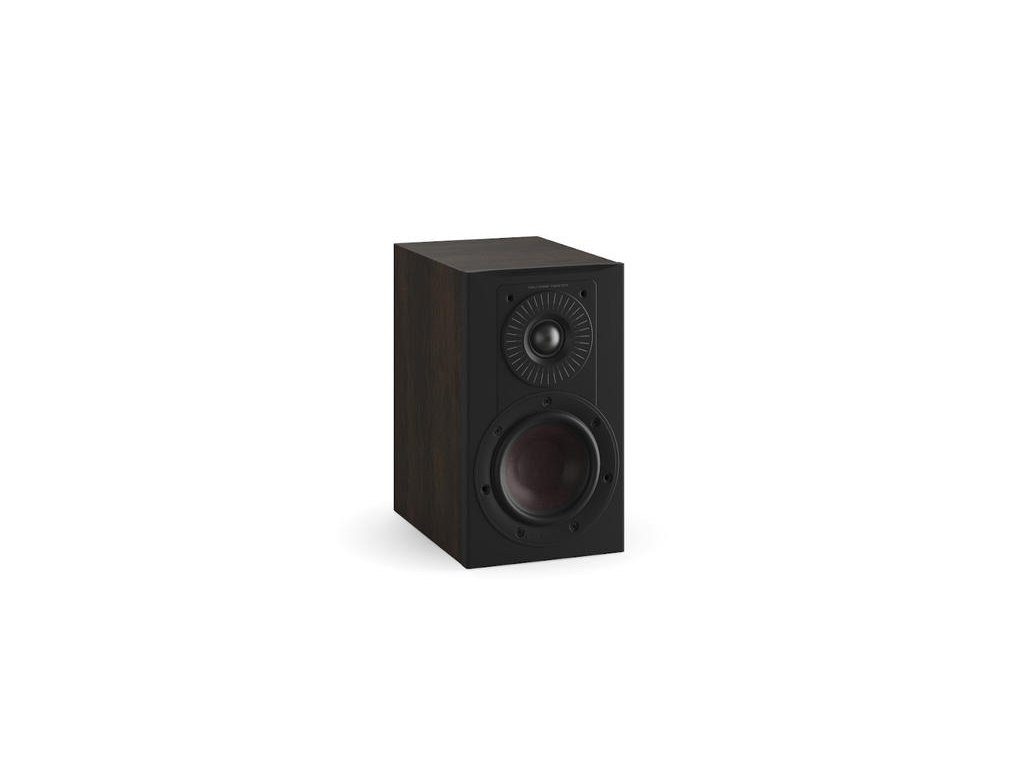

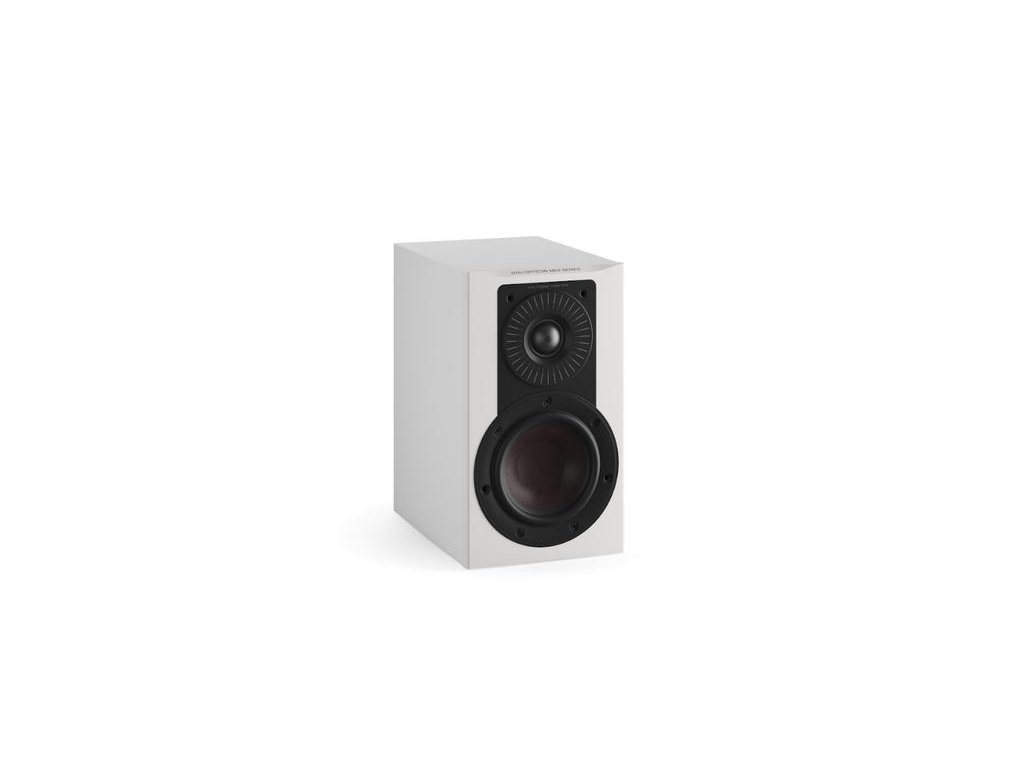

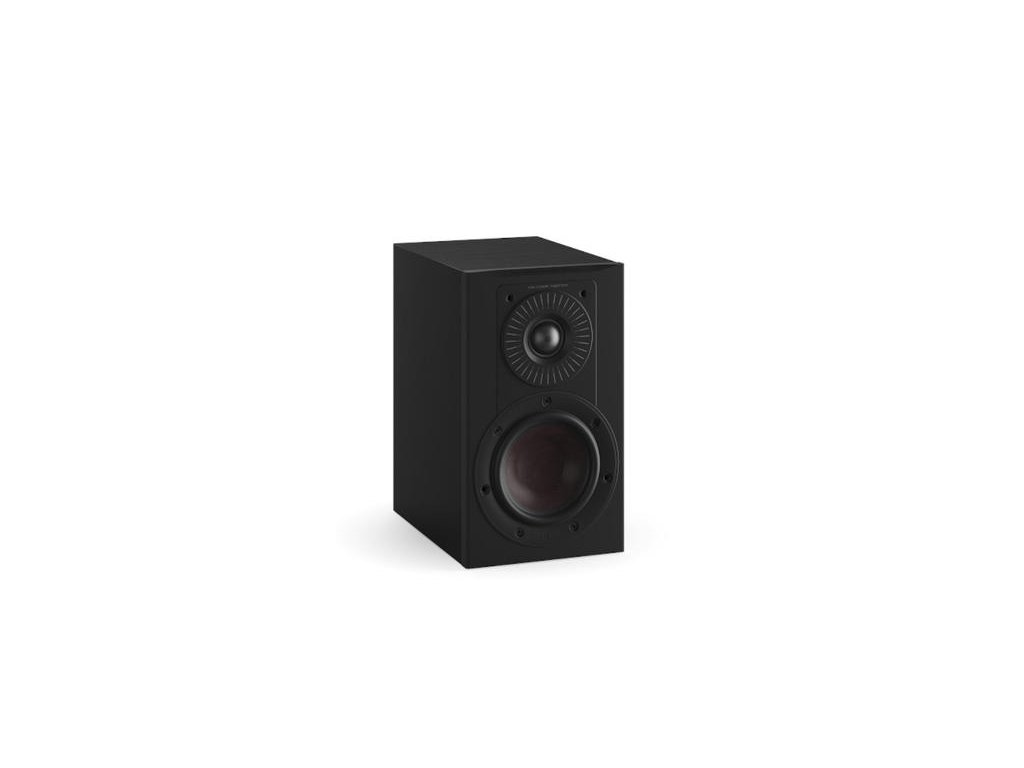

DALI OPTICON 1 MK2

Detailní popis produktu

• The OPTICON 1 MK2 is a compact stand mount
• speaker designed to be installed close to room
• boundaries or wall mounted in modest listening
• spaces. Its drivers comprise a 4¾” Wood Fibre
• diaphragm, SMC magnet bass/midrange unit and a
• newly designed 29mm soft dome tweeter derived
• from that employed in the CALLISTO series. The
• Dual Flare reflex loaded 5 Litre enclosure enables
• the OPTICON 1 MK2 to deliver remarkable bass
• performance for its size that integrates perfectly
• with the inherent midrange and high frequency
• quality of its drivers. The OPTICON 1 MK2 is
• supplied with a simple keyhole slot wall mounting
• bracket.

• - Frequency range (+/-3 dB) [Hz] 62 - 25.000
• - Sensitivity (2.83V/1m) [dB] 85
• - Nominal Impedance [ohm] 4
• - Maximum SPL [dB] 105
• - Recommended Amplifier Power [Watt] 25-100
• - Crossover frequency [Hz] 3.000
• - Crossover principle 2-way
• - High frequency driver 1 x 29 mm soft dome
• - Low Frequency / mid-range Driver(s) 1 x 4¾”
• - Enclosure type Bass reflex
• - Bass Reflex Tuning Frequency [Hz] 60
• - Connection Input(s) Single
• - Recommended placement Stand/Shelf/Wall
• - Recommended distance from rear wall to speaker’s rear panel [cm] lut.80
• - Dimensions (H x W x D) [mm] 261 x 152 x 231
• - Dimensions (H x W x D) [inches] 10.28 x 6.0 x 9.1
• - Weight [kg/lb] 4.9/ 10.8
• - Included accessories Rubber feet, manual
